HR 7893

type ST · family 1XP1 · 21.3 kV maximum anode voltage · 90° deflection · 3 windings · 296 g

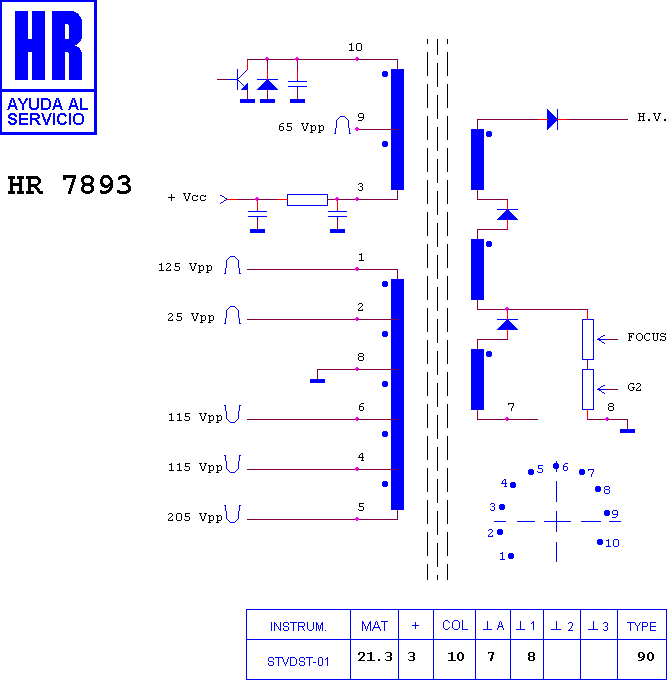

Schematic diagram for HR 7893
schematic

Manufacturer equivalents (1)

154 074 T

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8036 · HR 7885 · HR 8908 · HR 80049 · HR 8467 · HR 6454 · HR 7732 · HR 6350 · HR 8169 · HR 8907 · HR 7627 · HR 7869

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
