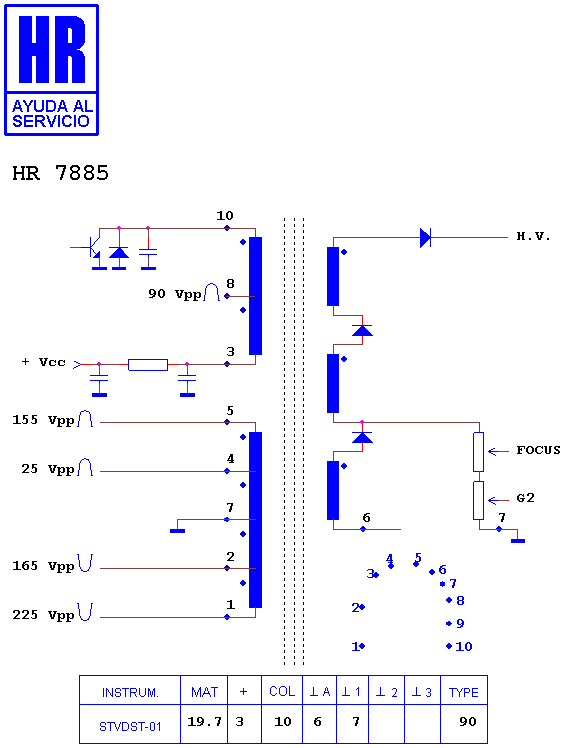

HR 7885

19.7 kV maximum anode voltage · 90° deflection · 3 windings · 262 g

Manufacturer equivalents (2)

BSC22-2902 · BSC22-2902A

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7893 · HR 8036 · HR 8377 · HR 80060 · HR 7920 · HR 7555 · HR 5708 · HR 7738 · HR 80049 · HR 6327 · HR 7841 · HR 7150

Fitted to (4)

TED 1458 · TED 1459 · TED T 148 · TED T 149 BM
