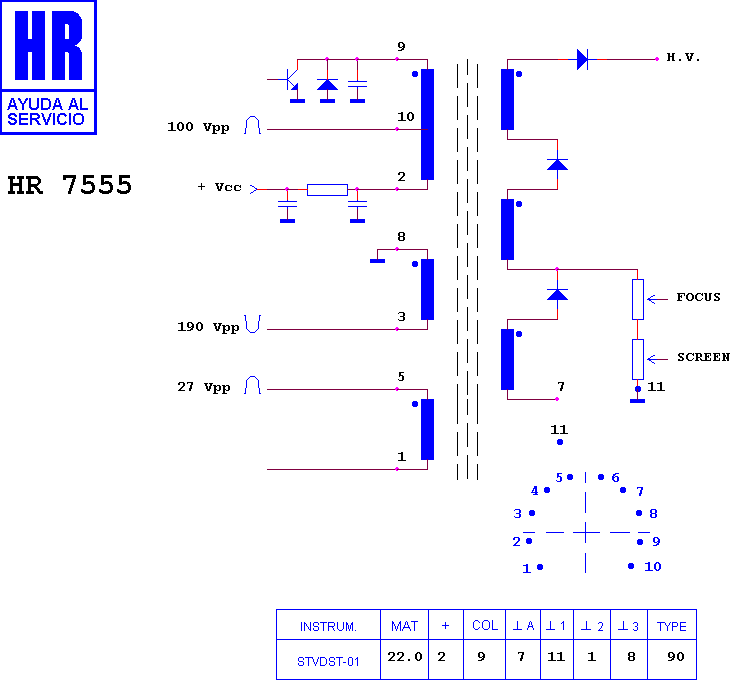

HR 7555

type ST · family 1NP · 22 kV maximum anode voltage · 90° deflection · 4 windings · 260 g

Manufacturer equivalents (2)

37.863 · HR 7555

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7501 · HR 7517 · HR 7553 · HR 6571 · HR 80060 · HR 8899 · HR 7920 · HR 8715 · HR 7446 · HR 7929 · HR 8026 · HR 6112

Fitted to (1)

ELBE CHASIS E 16 E 21
