HR 7512

type ST · family 1NP · 19 kV maximum anode voltage · 90° deflection · 3 windings · 261 g

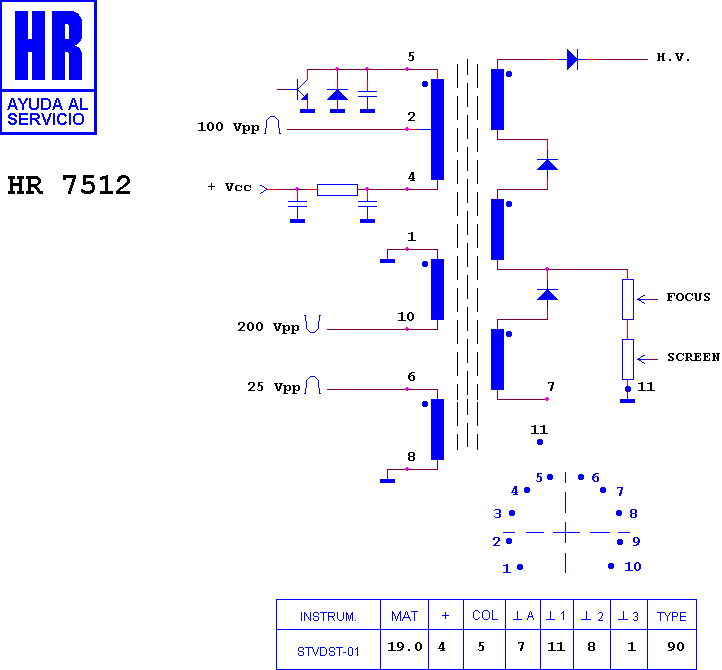

Schematic diagram for HR 7512
schematic

Manufacturer equivalents (3)

8804.0062/6 · 8814.3333/3 · HR7512

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7412 · HR 7011 · HR 7138 · HR 7119 · HR 7553 · HR 7517 · HR 8394 · HR 7501 · HR 8118 · HR 6571 · HR 7565 · HR 7555
