HR 8118

type ST · family 1XP1 · 19 kV maximum anode voltage · 90° deflection · 3 windings · 290 g

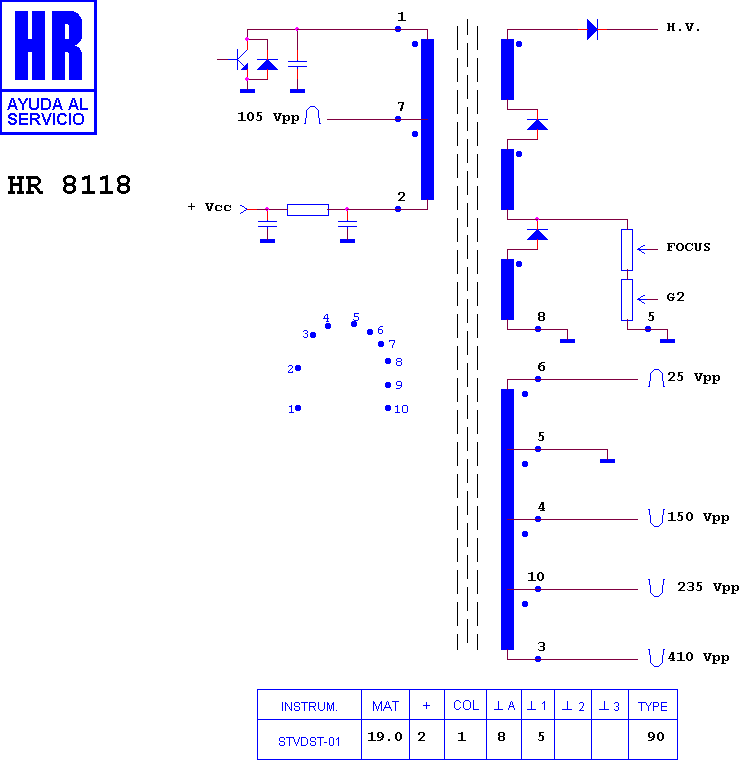

Schematic diagram for HR 8118
schematic

Manufacturer equivalents (14)

00008134 · 00008134000 · 003072006 · 003441005 · 03341004 · 1142.5074 · 1142.5074A · 8134 · AFS 350 · FAT30533 · FAT30696 · PET20-01 · RO 673 · TR 673

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7446 · HR 7973 · HR 8394 · HR 7663 · HR 8536 · HR 7947 · HR 7453 · HR 8784 · HR 8045 · HR 7517 · HR 7495 · HR 7501

Fitted to (7)

BLUE SKY BS 5198 · BLUE SKY CT 5596 · FIRST LINE FL 5598 NTX · FUNAI 20 A 231 · FUNAI 20 A 241 · PROTECH 5166 NT · VESTEL CHASIS 11 AK 20
