HR 8045

type ST · family 1NP1 · 19.5 kV maximum anode voltage · 90° deflection · 3 windings · 278 g

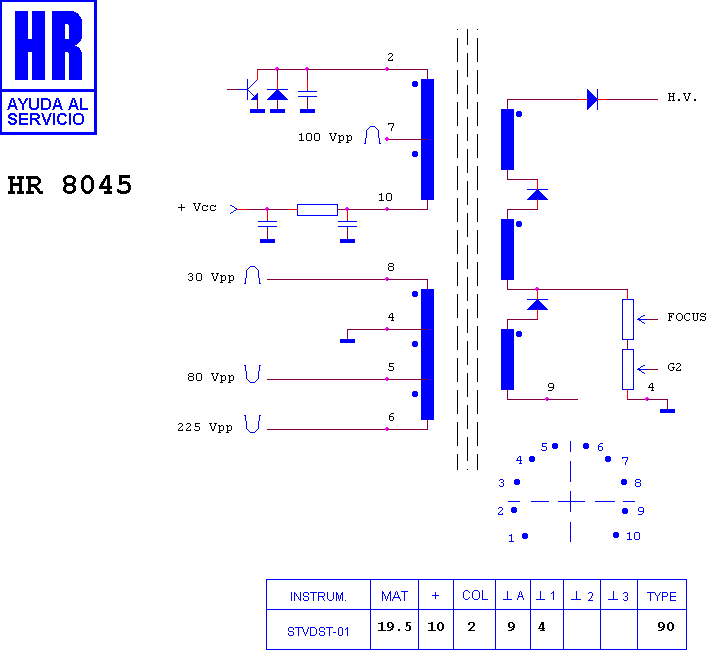

Schematic diagram for HR 8045
schematic

Manufacturer equivalents (6)

DNF-FE2021 · FAT30778 · FCC 2015 DE · FE2021 · HR 8045 · KN30778

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7446 · HR 7501 · HR 7517 · HR 8691 · HR 7973 · HR 80023 · HR 8784 · HR 7412 · HR 7507 · HR 6571 · HR 7555 · HR 7278

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (4)

KYOTO TC 14 PS · KYOTO TC 21 PS · KYOTO TC 51 PS · LENCO HORIZON
