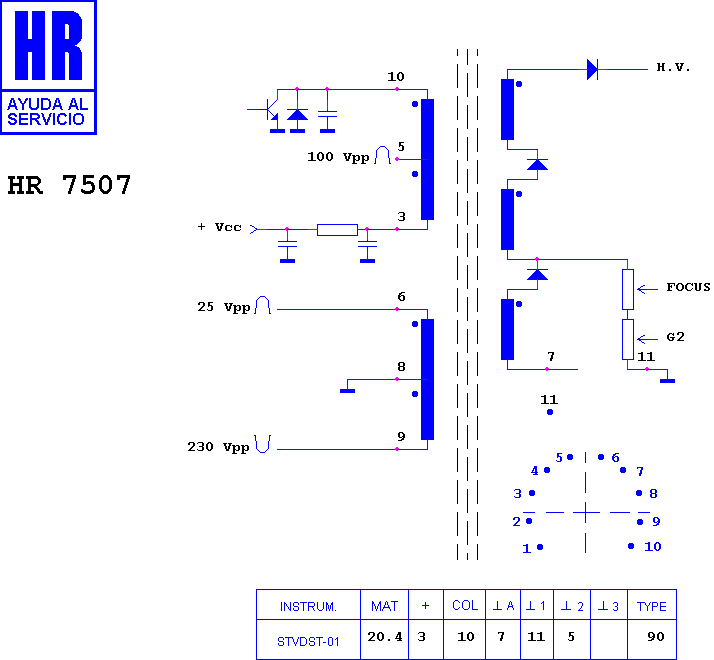

HR 7507

type ST · family 1NP1 · 20.4 kV maximum anode voltage · 90° deflection · 3 windings · 260 g

Manufacturer equivalents (2)

PET 19-00 · TKS 71

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8396 · HR 7565 · HR 8784 · HR 7501 · HR 8298 · HR 7604 · HR 80023 · HR 7517 · HR 7446 · HR 7211 · HR 8785 · HR 7663

Fitted to (1)

PROVISION 2103
