HR 7663

type ST · family 1YP · 24.2 kV maximum anode voltage · 90° deflection · 3 windings · 361 g

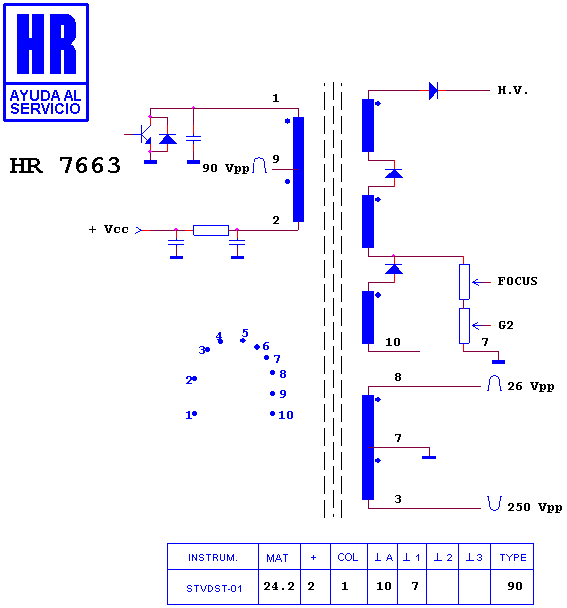

Schematic diagram for HR 7663
schematic

Manufacturer equivalents (3)

F 2034 BM · NF 2034 BM · RTRNF2034BMZZ

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7278 · HR 7492 · HR 7604 · HR 8118 · HR 7973 · HR 8187 · HR 80023 · HR 7501 · HR 7590 · HR 7211 · HR 8785 · HR 7514
