HR 7514

type ST · family 1NP1 · 17.6 kV maximum anode voltage · 90° deflection · 4 windings · 278 g

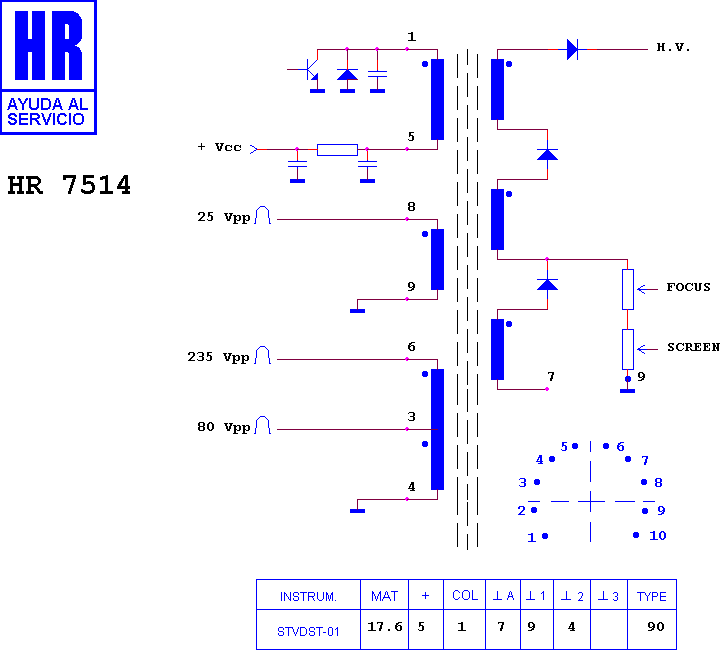

Schematic diagram for HR 7514
schematic

Manufacturer equivalents (5)

01800034875 · 1800034875 · 45158861 · 478047.00 · FAT30712

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8428 · HR 7182 · HR 7691 · HR 7561 · HR 7208 · HR 8190 · HR 7590 · HR 8920 · HR 7663 · HR 7211 · HR 8785 · HR 7238

Fitted to (3)

GRAETZ 519 · GRAETZ S · GRAETZ S 519
