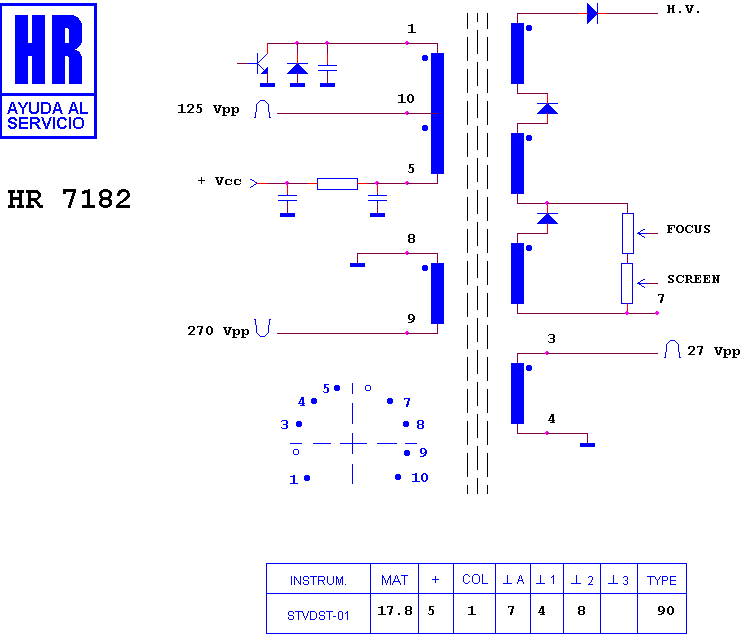

HR 7182

type ST · family 1NP1 · 17.8 kV maximum anode voltage · 90° deflection · 4 windings · 278 g

Manufacturer equivalents (2)

1142.0385 · 154 174 D

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7162 · HR 7163 · HR 7561 · HR 7514 · HR 8118 · HR 6028 · HR 7507 · HR 7161 · HR 8298 · HR 8396 · HR 7663 · HR 8045

Fitted to (2)

TRIAD C 201 · TRIAD C 201/2
