HR 7561

type ST · family 1NP · 17.5 kV maximum anode voltage · 90° deflection · 4 windings · 260 g

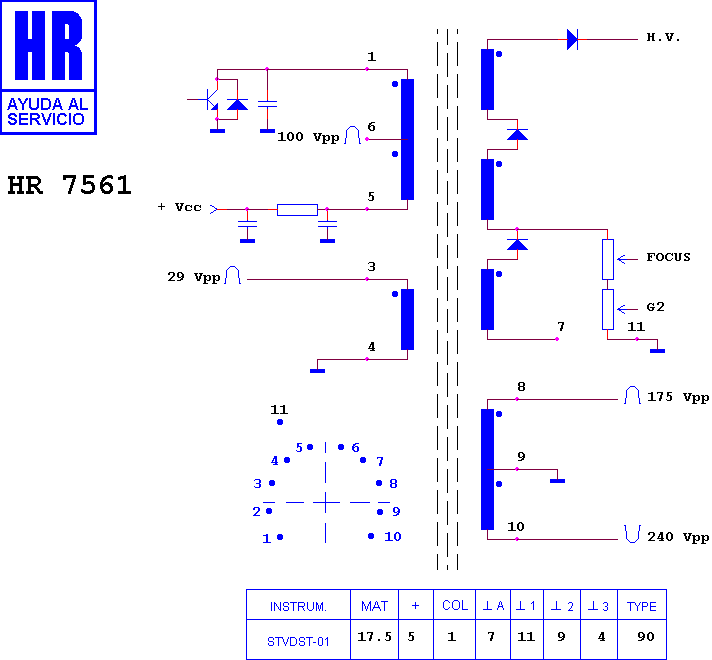

Schematic diagram for HR 7561
schematic

Manufacturer equivalents (3)

1142.0025 · 35 296 6008 · 35 296 6908

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7182 · HR 8428 · HR 7514 · HR 7162 · HR 7208 · HR 80023 · HR 7986 · HR 8118 · HR 7517 · HR 8396 · HR 7501 · HR 7973

Fitted to (4)

MAGNADYNE CHASIS T 4 · MAGNADYNE CHASIS T 5 · RADIOMARELLI CHASIS T 4 · RADIOMARELLI CHASIS T 5
