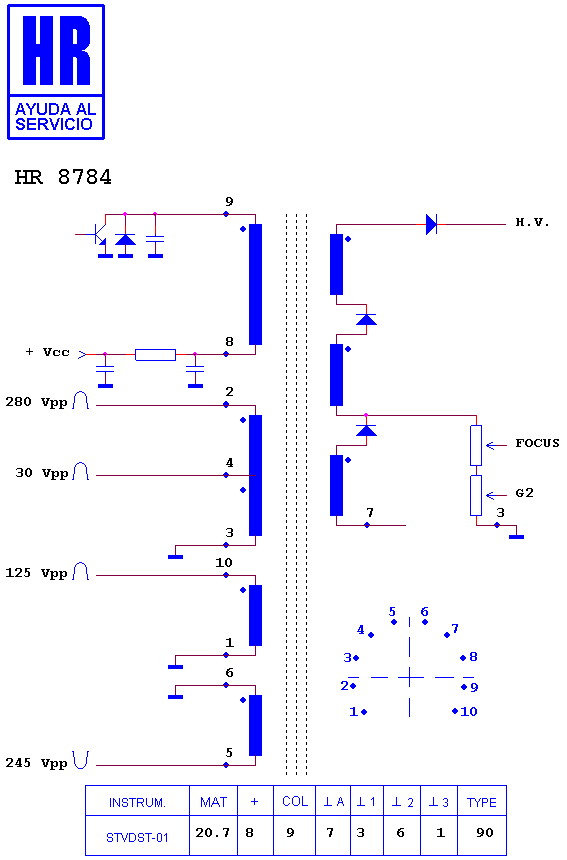

HR 8784

type ST · family 1NP1 · 20.7 kV maximum anode voltage · 90° deflection · 5 windings · 270 g

Manufacturer equivalents (1)

FCV 2010 E 03

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7663 · HR 7947 · HR 7774 · HR 7211 · HR 8785 · HR 8276 · HR 8119 · HR 8394 · HR 8691 · HR 7278 · HR 7813 · HR 7514

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (1)

TELEFUNKEN MP 510

Search this part in the full database
