HR 7813

type ST · family 1XP1 · 24.1 kV maximum anode voltage · 90° deflection · 4 windings · 256 g

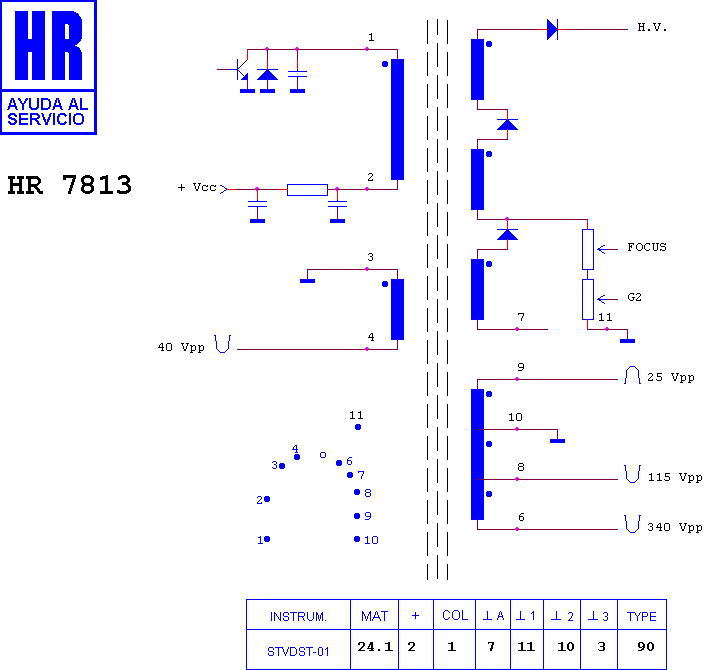

Schematic diagram for HR 7813
schematic

Manufacturer equivalents (11)

003081034 · 003441024 · 103644.70 · 140 10563 · 2422 531 02156 · 40342-10 · 4822 140 10563 · 531 02156 · FAT30493 · RO469 · TR469

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7814 · HR 7774 · HR 8119 · HR 8190 · HR 8065 · HR 8784 · HR 8230

Fitted to (34)

ARI 52 TB 2452/19 · PHILIPS 21 PT 1342/43 · PHILIPS 21 PT 1342/58 · PHILIPS 21 PT 136 B/39 · PHILIPS 21 PT 1532 · PHILIPS 21 PT 1532/05 · PHILIPS 21 PT 1532/58 · PHILIPS 21 PT 1542/43 · PHILIPS 21 PT 1542/58 · PHILIPS 52 TA 1472/03 · PHILIPS 52 TA 1472/08 · PHILIPS 52 TA 1472/11 · PHILIPS 52 TA 1472/16 · PHILIPS 52 TA 1472/18 · PHILIPS CHASIS AA 5 AB · PHILIPS CHASIS L 6.1 AA · PHILIPS M 2132/00 · PHILIPS M 2132/01 · PHILIPS M 2132/07 · PHILIPS M 2132/11 · PHILIPS M 2132/16 · PHILIPS M 2192 · PHONOLA 52 TA 1262/18 · PHONOLA 52 TA 1472/03 · PHONOLA 52 TA 1472/08 · PHONOLA 52 TA 1472/11 · PHONOLA 52 TA 1472/16 · PHONOLA 52 TA 1472/18 · PHONOLA 52 TB 1252/19 · PHONOLA 52 TB 2452/19 · PHONOLA CHASIS AA 5 AB · PHONOLA CHASIS L 6.1 AA · PYE M 2192 · PYE M 2192/05
