HR 8065

type ST · family 1NP1 · 20.3 kV maximum anode voltage · 90° deflection · 3 windings · 278 g

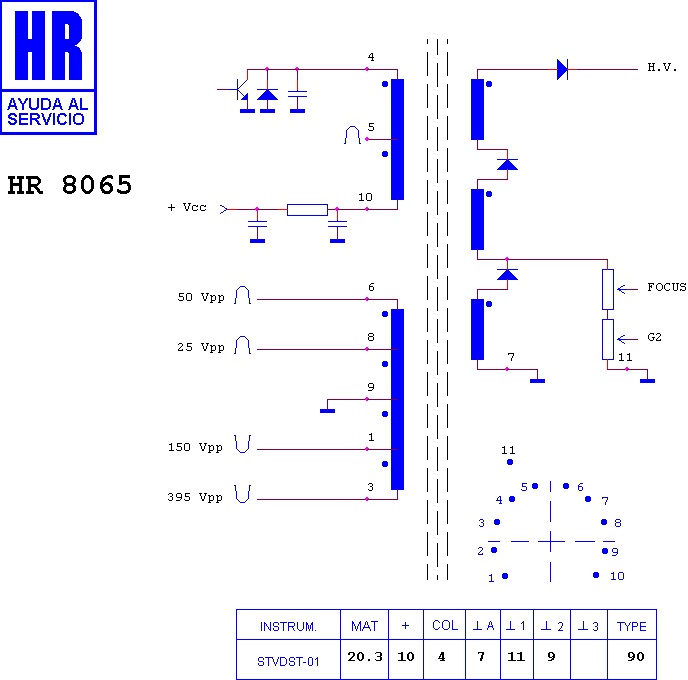

Schematic diagram for HR 8065 — schematic

Manufacturer equivalents (1)

HR 8065-00

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8119 · HR 7813 · HR 8230 · HR 7814 · HR 7745 · HR 7449
