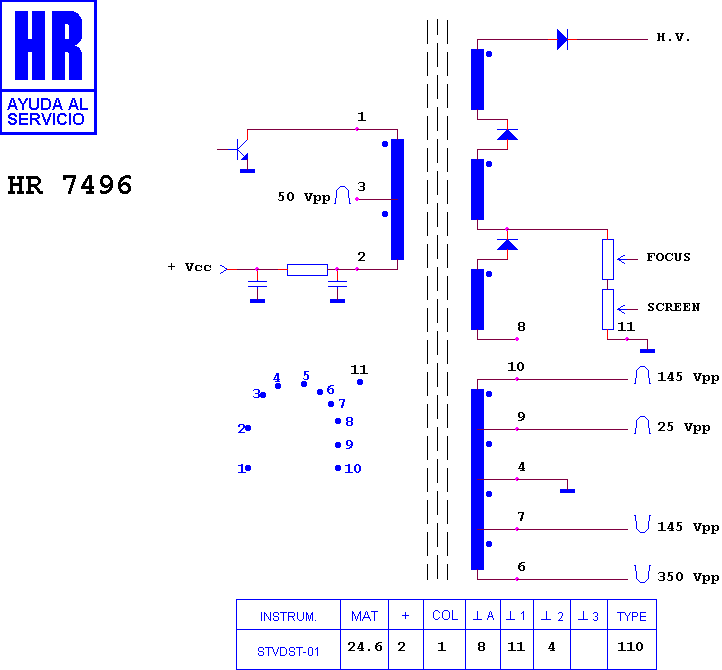

HR 7496

type ST · family 1XP1 · 24.6 kV maximum anode voltage · 110° deflection · 3 windings · 290 g

Manufacturer equivalents (1)

5908-05007A-AA

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8415 · HR 8280 · HR 7939 · HR 7924 · HR 8150 · HR 8387
