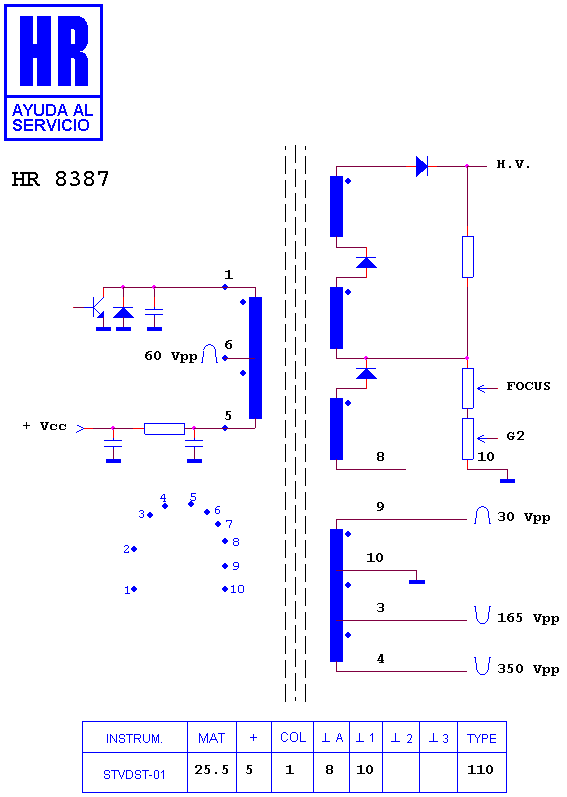

HR 8387

type ST · family 1VP · 25.5 kV maximum anode voltage · 110° deflection · 3 windings · 374 g

Manufacturer equivalents (2)

439 161 · GN439161

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7939 · HR 7924 · HR 8415 · HR 8150 · HR 80064 · HR 6296 · HR 7496
