HR 8150

type ST · family 1NP1 · 25.5 kV maximum anode voltage · 110° deflection · 4 windings · 278 g

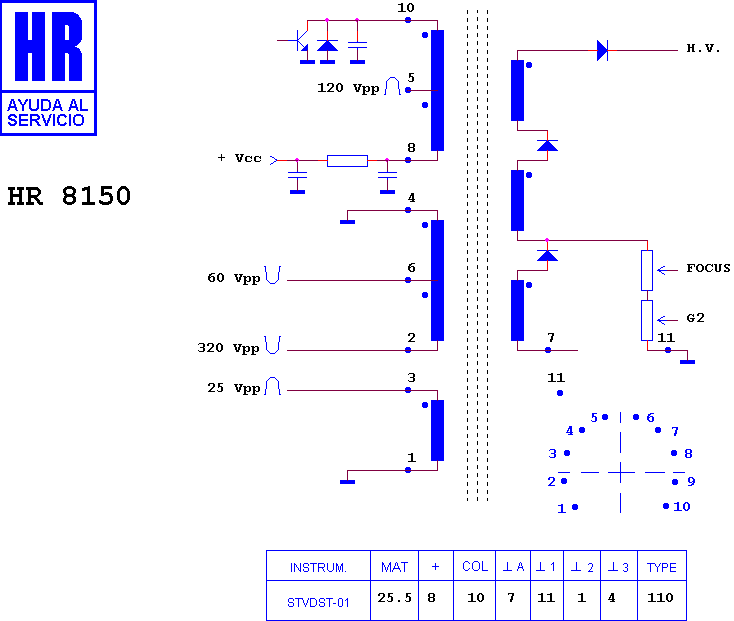

Schematic diagram for HR 8150
schematic

Manufacturer equivalents (1)

TVL 108/2

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8280 · HR 8415 · HR 8387 · HR 80064 · HR 8989 · HR 7924 · HR 7939 · HR 7362 · HR 7496

Fitted to (6)

BIAZET 2101 · BIAZET 2102 · BIAZET TC 2101 · BIAZET TC 2102 · BIAZET TC 450 · BIAZET TC 460
