HR 8989

37.2 kV maximum anode voltage · 110° deflection · 4 windings · 374 g

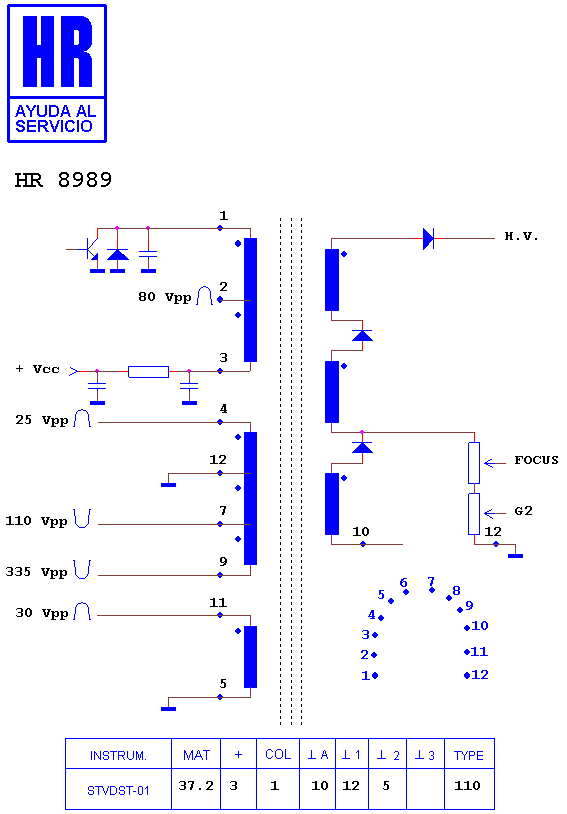

Schematic diagram for HR 8989
schematic (archived)

Manufacturer equivalents (2)

1372.0026 · 1372.0026A

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8141 · HR 7362 · HR 80064 · HR 8150 · HR 7924 · HR 7939
