HR 8141

type ST · family 1YP · 41.1 kV maximum anode voltage · 110° deflection · 3 windings · 410 g

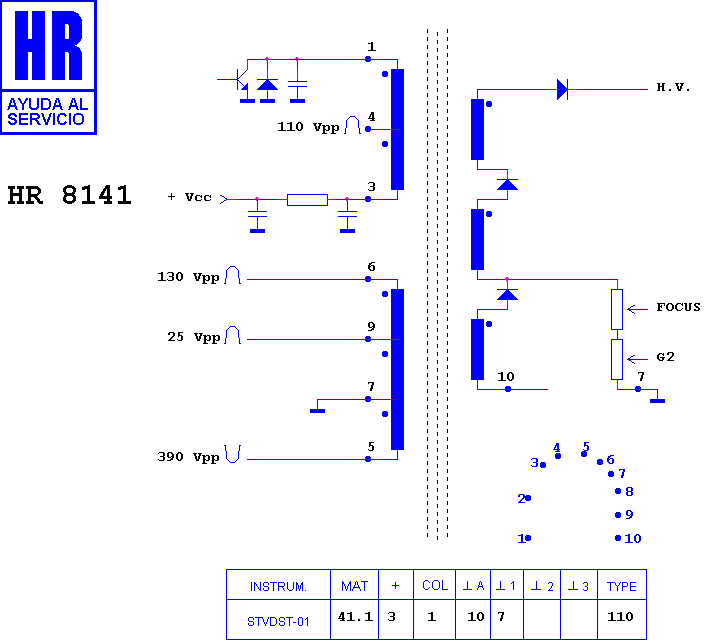

Schematic diagram for HR 8141
schematic

Manufacturer equivalents (2)

F 1802 CE · RTRNF1802CEZZ

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8989 · HR 80099 · HR 8716

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (4)

SHARP C 2877 · SHARP C 2877 B · SHARP C 2899 · SHARP C 2899 A
