HR 80099

51.1 kV maximum anode voltage · 110° deflection · 4 windings · 474 g

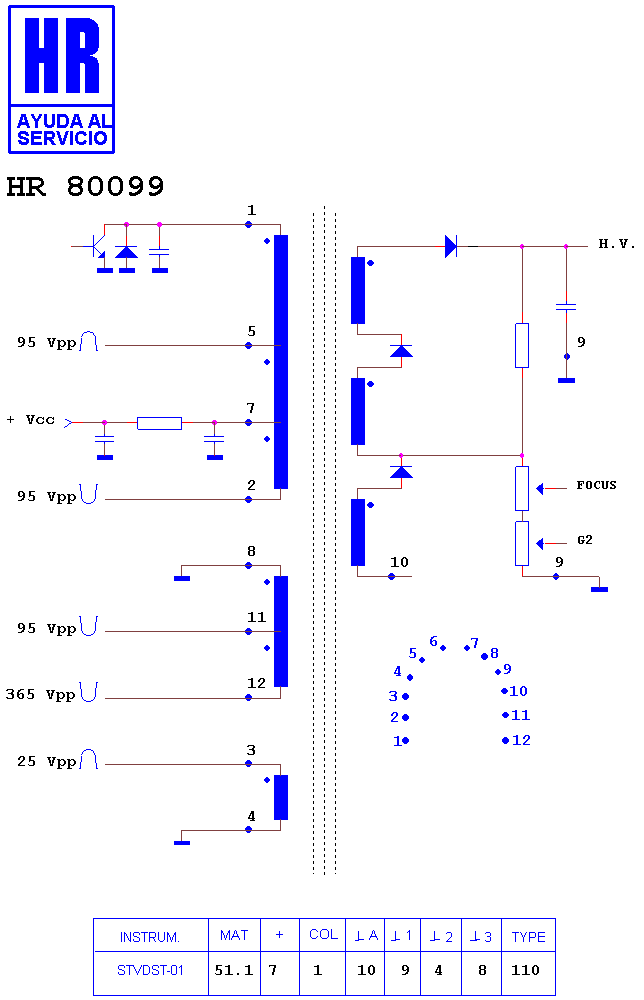

Schematic diagram for HR 80099
schematic (archived)

Manufacturer equivalents (5)

1372.8817 · 1372.8817B · 45360095 · HR 80099 · PPE0082

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8141 · HR 7362 · HR 46275
