HR 46275

40.2 kV maximum anode voltage · 110° deflection · 3 windings · 444 g

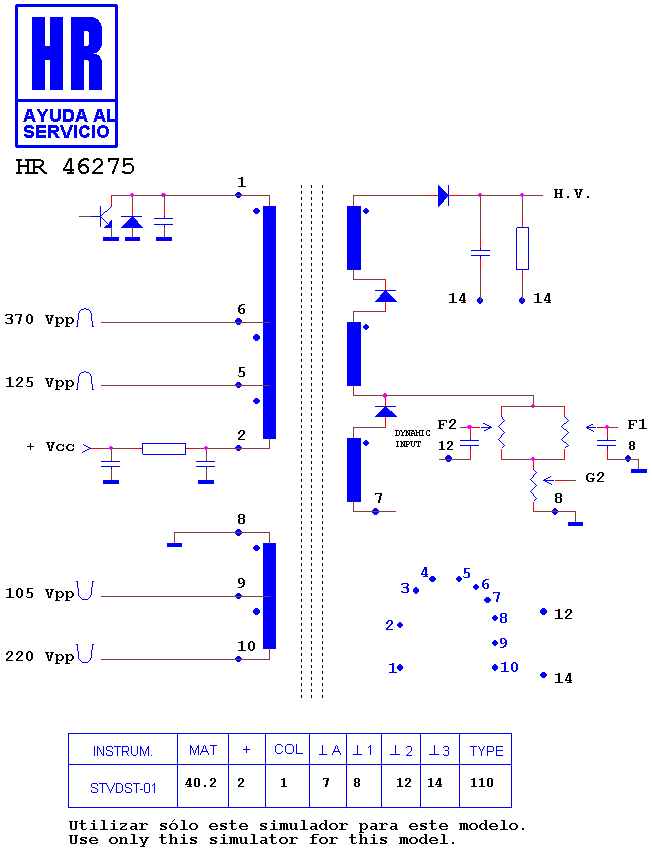

Schematic diagram for HR 46275
schematic (archived)

Manufacturer equivalents (19)

13831582 · 13831660 · 313813831582 · 313813831660 · 313813831661 · 31582 · 31661 · 6985220 · AT2097/14 · AT2097/14A · AT2097/14B · AT2097/16 · AT2097/16A · AT2097/16B · AT2097/18 · AT2097/18A · AT2097/18B · FEA557 · FEA557C

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80099 · HR 6482

Fitted to (61)

BARCO ADVM 20 · BARCO MONITOR · CNV 15 CX · CNV MONITOR · HEWLETT PACKARD D 2838 · HEWLETT PACKARD MONITOR · IBM 107 P 20 · IBM 6547-00 E · IBM MONITOR · IBM MONITOR · LOS 15 CX · LOS MONITOR · PHILIPS 107 B 10 · PHILIPS 107 P 20 · PHILIPS 107 P 20/75 H · PHILIPS 109 B 20 · PHILIPS 109 B 20/15 N · PHILIPS 109 S 10/00 · PHILIPS 109 S 20 · PHILIPS 109 S 20/75 C · PHILIPS 19 A 580 BQ/20C · PHILIPS 19 A 580 QB/20C · PHILIPS 3 L 32428 H/00C · PHILIPS 3 L 32428 H/00Z · PHILIPS 3 L 32428 H/31C · PHILIPS 3 L 32428 H/31H · PHILIPS 3 L 32428 H/48B · PHILIPS 3 L 32428 H/74J · PHILIPS 3 L 32428 H/76J · PHILIPS 3 L 32428 H/89H · PHILIPS 3 L 32428 H/95C · PHILIPS 3 L 32428 H/96C · PHILIPS 3 L 32428 H/97C · PHILIPS 3 L 32428 Q/74J · PHILIPS BRILLIANCE 107P · PHILIPS CHASIS CM 2519 · PHILIPS CM 2519 · PHILIPS MONITOR · PHILIPS MONITOR · PHILIPS MONITOR · PHILIPS MONITOR · PHILIPS MONITOR · PHILIPS MONITOR · PHILIPS MONITOR · PHILIPS MONITOR · PHILIPS MONITOR · PHILIPS MONITOR · PHILIPS MONITOR · PHILIPS MONITOR · PHILIPS MONITOR · PHILIPS MONITOR · PHILIPS MONITOR · PHILIPS MONITOR · PHILIPS MONITOR · PHILIPS MONITOR · PHILIPS MONITOR · PHILIPS MONITOR · PHILIPS MONITOR · PHILIPS MONITOR · PHILIPS MONITOR · PHILIPS MONITOR

Search this part in the full database
