HR 6482

type ST · family 1BS1 · 31.5 kV maximum anode voltage · 110° deflection · 3 windings · 358 g

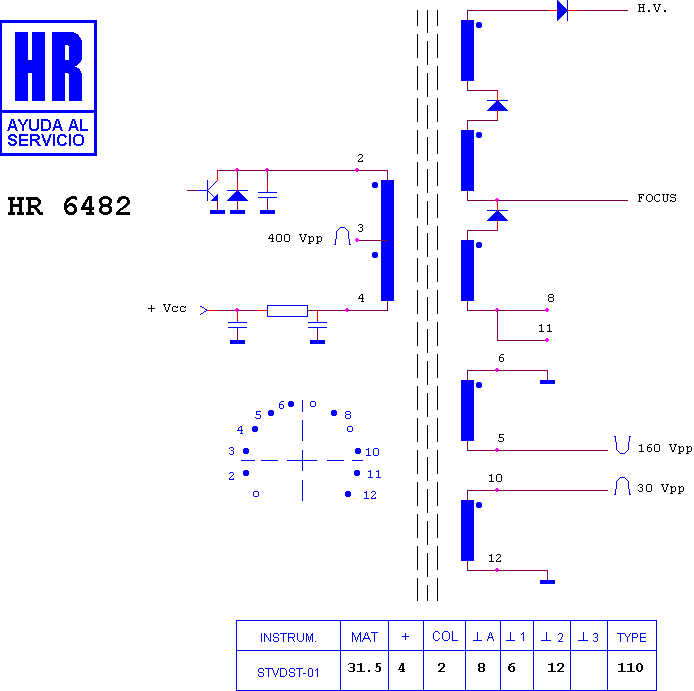

Schematic diagram for HR 6482
schematic

Manufacturer equivalents (2)

610 018 6859 · F 1162

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 46275

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (2)

SANYO CTP 8666 G · SANYO CTP 8666-6
