HR 7362

type ST · family 1RP · 24 kV maximum anode voltage · 110° deflection · 3 windings · 358 g

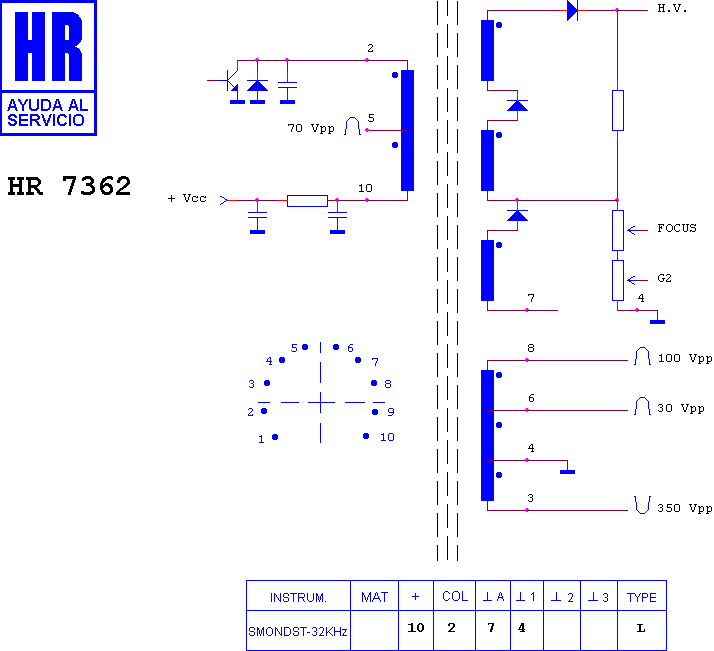

Schematic diagram for HR 7362
schematic

Manufacturer equivalents (4)

3713001 · 37130011 · AM 175082 · AMS 175082

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80064 · HR 8989 · HR 8150 · HR 7924 · HR 7939 · HR 80099 · HR 8415

Fitted to (3)

AMS COMPUTER MONITOR · AMS PC 1640 · AMS PC ECD
