HR 7939

type ST · family 1VP · 25.2 kV maximum anode voltage · 110° deflection · 3 windings · 408 g

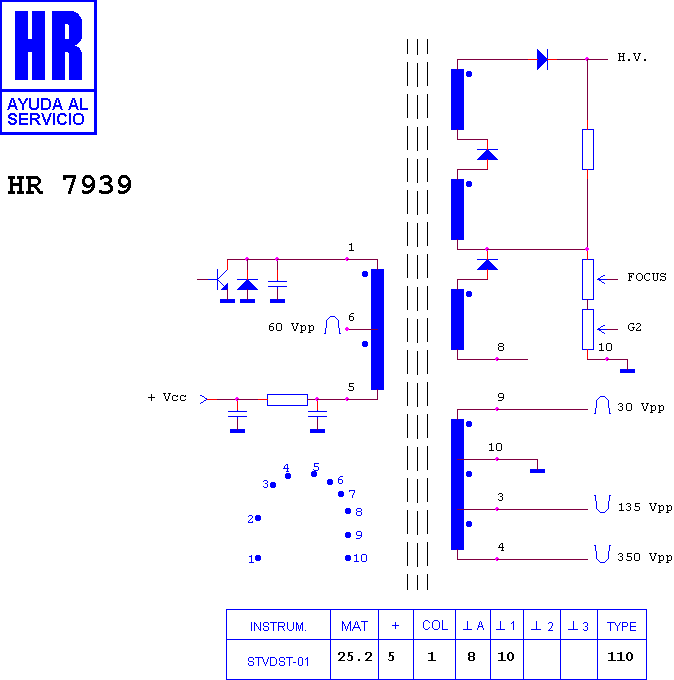

Schematic diagram for HR 7939
schematic

Manufacturer equivalents (3)

FLB505 · FLB505-425765 · HR 7939-00

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7924 · HR 8387 · HR 8415 · HR 8150 · HR 80064 · HR 8280 · HR 8989 · HR 7362 · HR 7496

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (5)

AKAI CHASIS E 9 110§ · AKAI CTK 211 T · BELSTAR 2597 TSN · BELSTAR 2897 TSN · BELSTAR CHASIS E 9 110§
