HR 8280

type ST · family 1AP1 · 27.9 kV maximum anode voltage · 110° deflection · 4 windings · 390 g

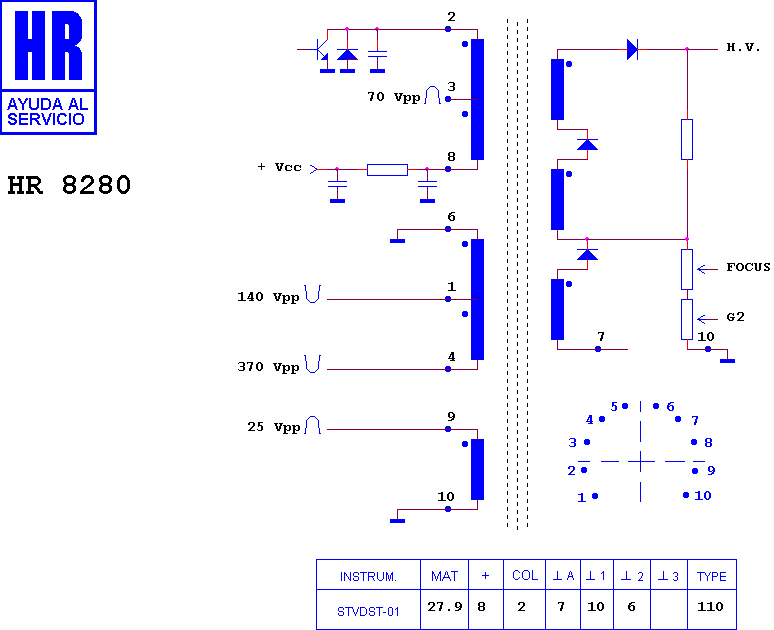

Schematic diagram for HR 8280
schematic

Manufacturer equivalents (4)

103553.40 · 362513003035 · 40330-13 · G 5679-01

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8744 · HR 8150 · HR 7924 · HR 7939 · HR 7496

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (3)

RFT 63-3000 · RFT 70-3000 · RFT TV
