HR 7924

type ST · family 1VP · 25.2 kV maximum anode voltage · 110° deflection · 3 windings · 400 g

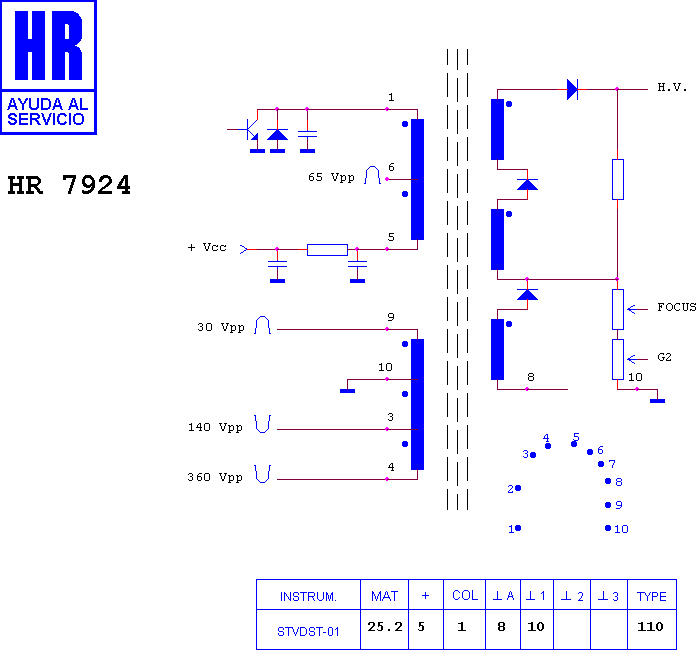

Schematic diagram for HR 7924
schematic

Manufacturer equivalents (8)

1352.5025 · 1352.5025A · 1352.5025G · 425 765 · 435877 · FAT30759 · GN 425 765 · GN 425 766

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7939 · HR 8387 · HR 8150 · HR 8280 · HR 80064 · HR 8989 · HR 7362 · HR 7496

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (3)

GORENJE 79 S 09 F · GORENJE APOLLO TX · GORENJE CHASIS E 9 110§
