HR 8744

32.4 kV maximum anode voltage · 110° deflection · 3 windings · 400 g

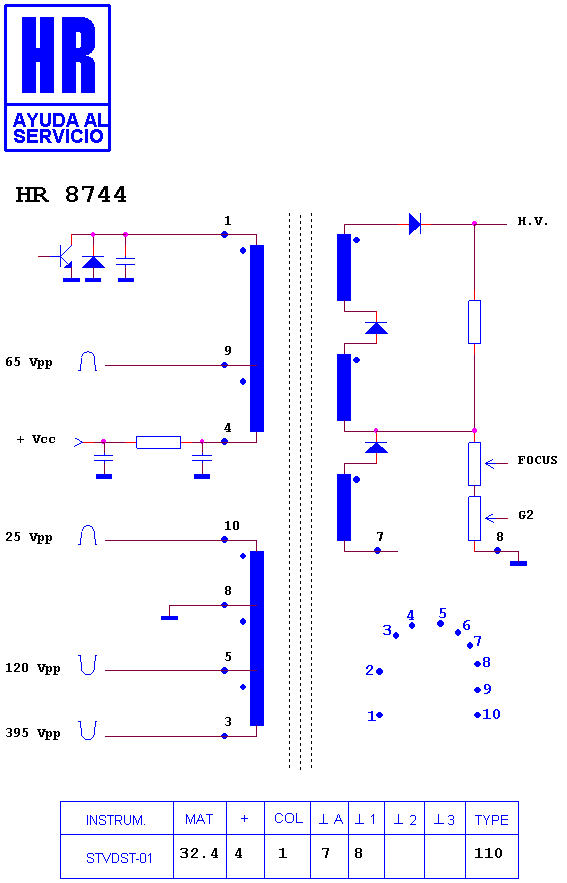

Schematic diagram for HR 8744
schematic (archived)

Manufacturer equivalents (5)

1152.7001 · 1152.7001A · 1152.7001C · 50H0000240 · HR 8744

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80064 · HR 6384 · HR 8280

Fitted to (5)

DAEWOO 2155 PF · DAEWOO CHASIS CP 485 F · DAEWOO DTB 21 U 7 S · GOODMANS 2155 PF · GOODMANS CHASIS CP 485 F
