HR 6296

type ST · family 1BP1 · 21 kV maximum anode voltage · 110° deflection · 4 windings · 358 g

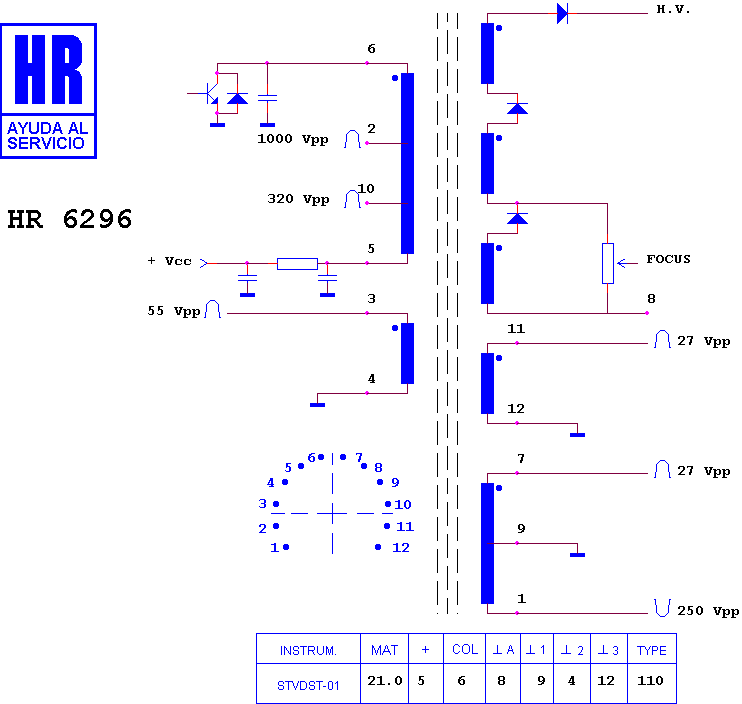

Schematic diagram for HR 6296
schematic

Manufacturer equivalents (4)

79 A 302-2 · BSC 22-10030 · BSC 2506 · BSC 2513

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8023 · HR 8387 · HR 80035 · HR 6422

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (2)

AIMEI C 4112 · MEIJING DK 9 C 3-3 A
