HR 7745

type ST · family 1VP · 25.6 kV maximum anode voltage · 90° deflection · 3 windings · 378 g

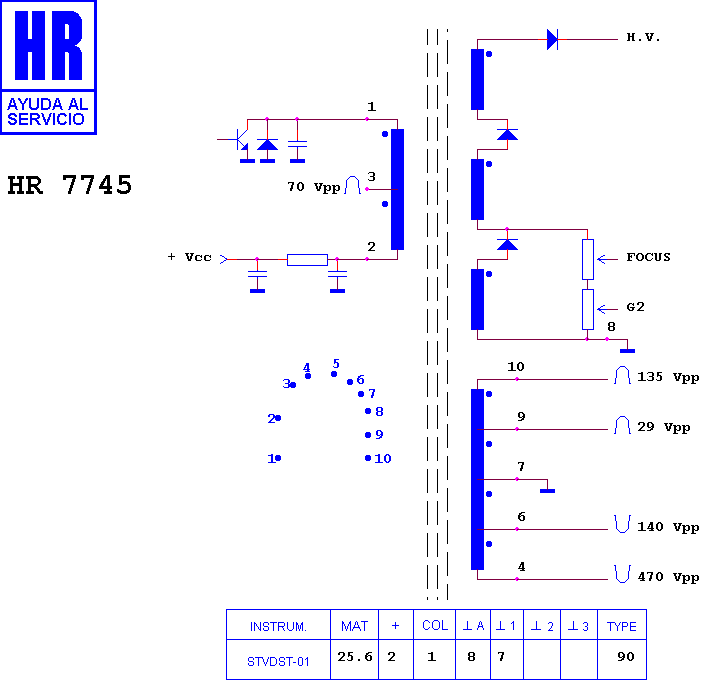

Schematic diagram for HR 7745
schematic

Manufacturer equivalents (2)

047 105 220 · 471-05220

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7449 · HR 8262 · HR 8924 · HR 6495 · HR 8065

Fitted to (3)

CURTIS MATHES CT 2510 A · NEC CT 2510 A · NEC CT 2610 A
