HR 8262

type ST · family 1YP · 24.6 kV maximum anode voltage · 90° deflection · 4 windings · 410 g

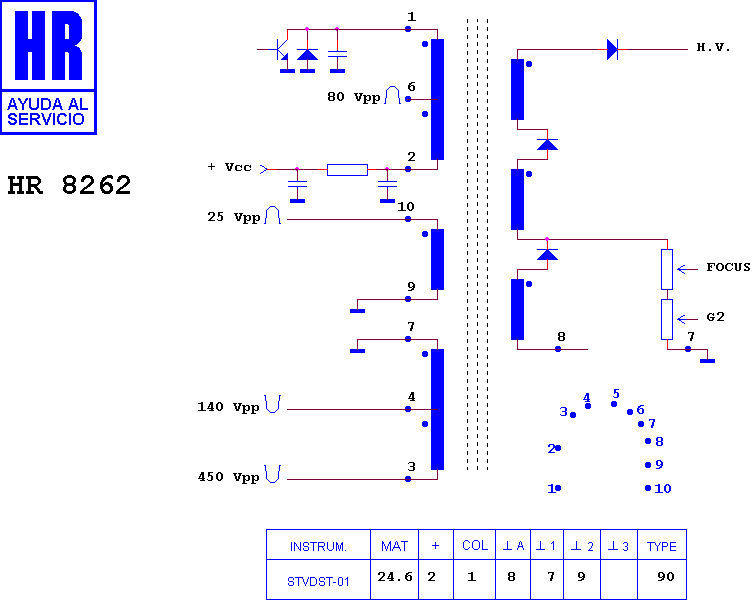

Schematic diagram for HR 8262
schematic

Manufacturer equivalents (3)

334 P 18504 · 334 P 185040 · KT 12.002

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7745 · HR 8924 · HR 7449 · HR 6495 · HR 6551 · HR 6492 · HR 8230

Fitted to (4)

MITSUBISHI TC 21 FC · MITSUBISHI TC 2121 · MITSUBISHI TC 2121 FC · MITSUBISHI TC 2121 FS
