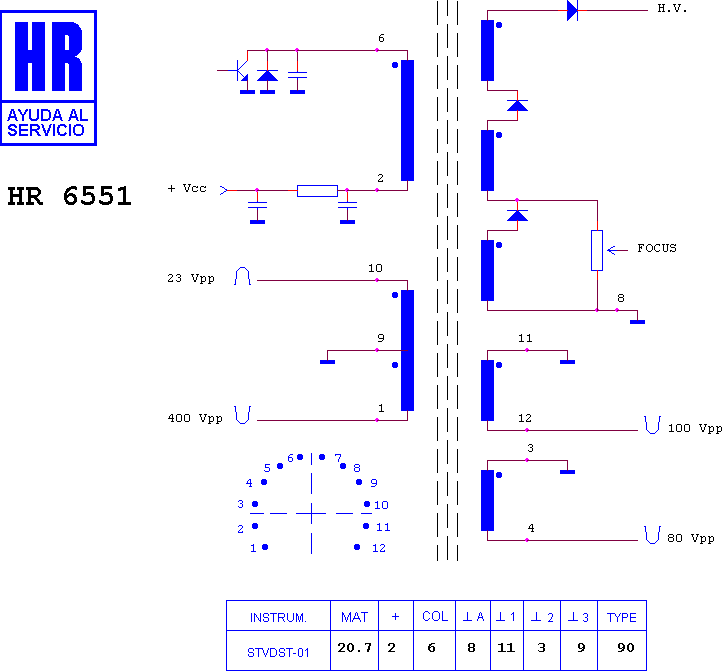

HR 6551

type ST · family 1BP1 · 20.7 kV maximum anode voltage · 90° deflection · 4 windings · 358 g

Manufacturer equivalents (1)

2432391

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8262 · HR 8821 · HR 6495

Accessories (1)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 16525 — Screen (G2) control

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
