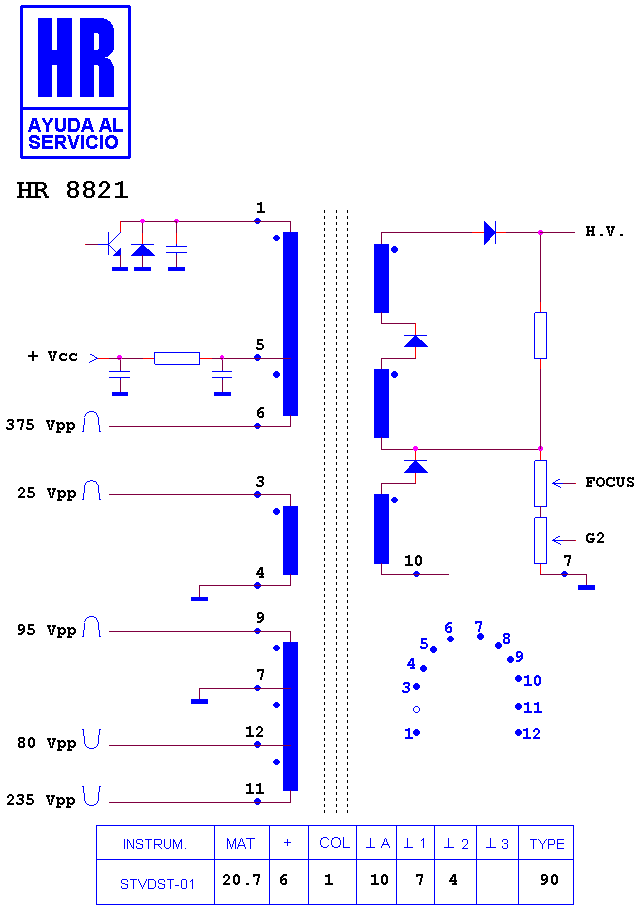

HR 8821

type ST · family 1VP2 · 20.7 kV maximum anode voltage · 90° deflection · 4 windings · 400 g

Manufacturer equivalents (10)

107371.80 · 107500.20 · 107505.20 · 1372.0090 · 1372.0092 · 1372.0092 A · 1372.0092 D · 1372.00922 · 1372.00922 A · HR 8821

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6551 · HR 6495 · HR 8824

Fitted to (10)

BRANDT CHASIS ICC 21 34" 4/3 · FERGUSON-THORN-EMI CHASIS ICC 21 34" 4/3 · NORDMENDE CHASIS ICC 21 34" 4/3 · SABA CHASIS ICC 21 34" 4/3 · TELEFUNKEN CHASIS ICC 21 34" 4/3 · THOMSON 34 DF 640 G · THOMSON CHASIS ICC 20 · THOMSON CHASIS ICC 21 · THOMSON CHASIS ICC 21 34" 4/3 · THOMSON CHASIS ICC 22
