HR 8824

21.1 kV maximum anode voltage · 90° deflection · 3 windings · 400 g

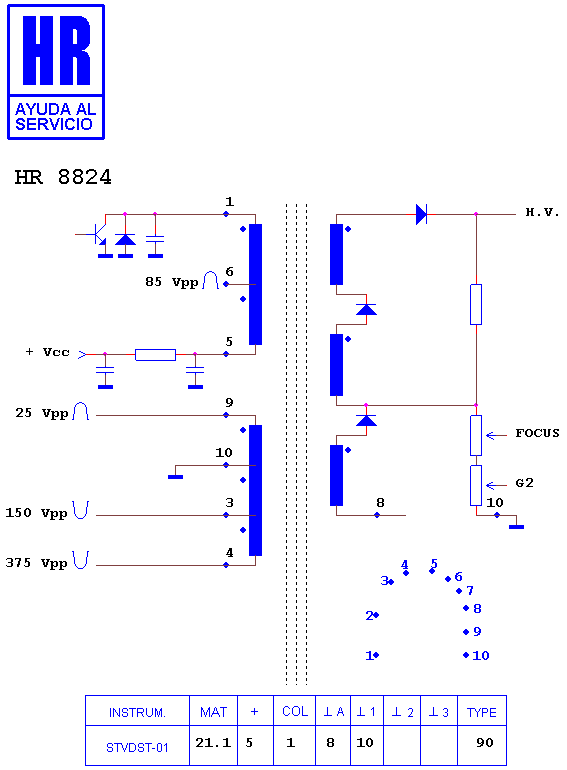

Schematic diagram for HR 8824
schematic (archived)

Manufacturer equivalents (4)

1152.7008 · 1152.7008A · 446830 · HR 8824

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8230 · HR 7483 · HR 6495 · HR 8601 · HR 7499 · HR 8821

Fitted to (4)

E V CHASIS 12 P · GORENJE 12 P · GORENJE CHASIS 12 P · UNIVERSUM FT 4239
