HR 8230

type ST · family 1VP · 20.4 kV maximum anode voltage · 90° deflection · 3 windings · 408 g

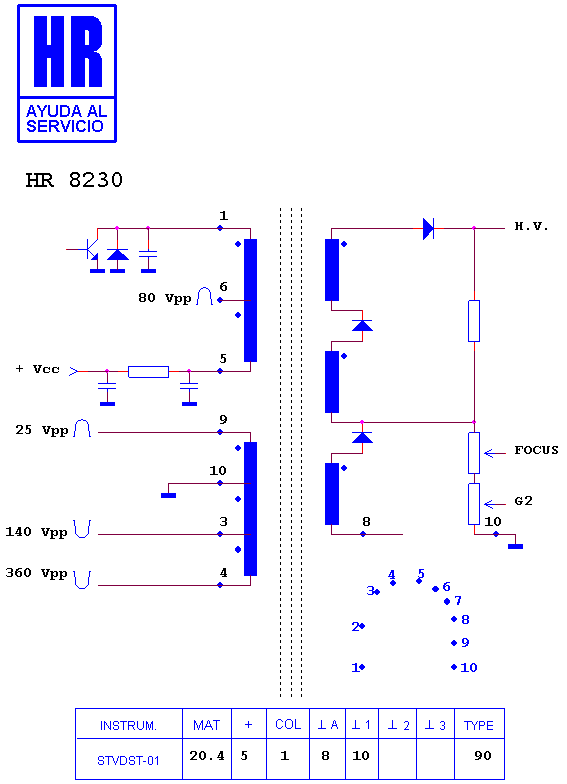

Schematic diagram for HR 8230
schematic

Manufacturer equivalents (6)

1352.5042 · 1352.5042A · 435 220 · FAT30794 · GN435220 · HR 8230

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8824 · HR 7499 · HR 7483 · HR 8119 · HR 6495 · HR 8262 · HR 7813 · HR 8065
