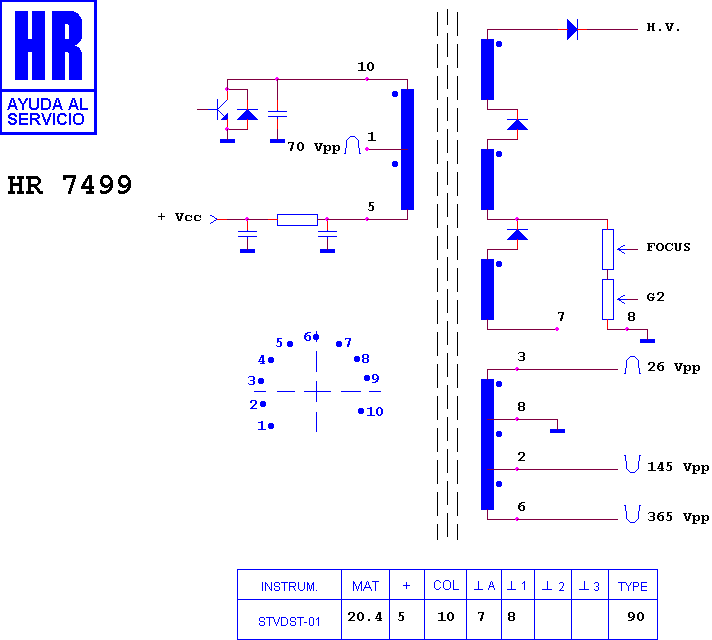

HR 7499

type ST · family 1XP1 · 20.4 kV maximum anode voltage · 90° deflection · 3 windings · 290 g

Manufacturer equivalents (5)

154 074 B · 154 074 E · 154 074 F · EX 77 X 19 · SP 141

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8230 · HR 7483 · HR 8824 · HR 6495 · HR 6131

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (5)

DREAN 3102 DB · DREAN 3102 DB 14 STEREO · LG - GOLDSTAR CHASIS NF 02 X A/V · LG - GOLDSTAR CMT 4282 N · LG - GOLDSTAR CNR 4842
