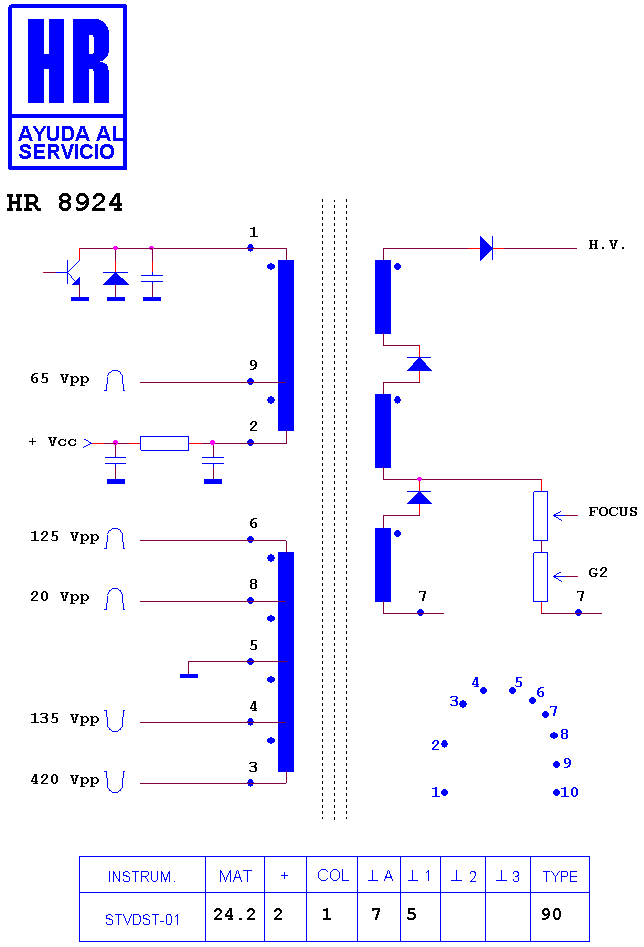

HR 8924

24.2 kV maximum anode voltage · 90° deflection · 3 windings · 256 g

Manufacturer equivalents (1)

BSC23-3315

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8262 · HR 7745 · HR 7449

Fitted to (4)

HSN TC 2100 · HSN TC 2110 A · HSN TC 2175 · HSN TC 2181 A
