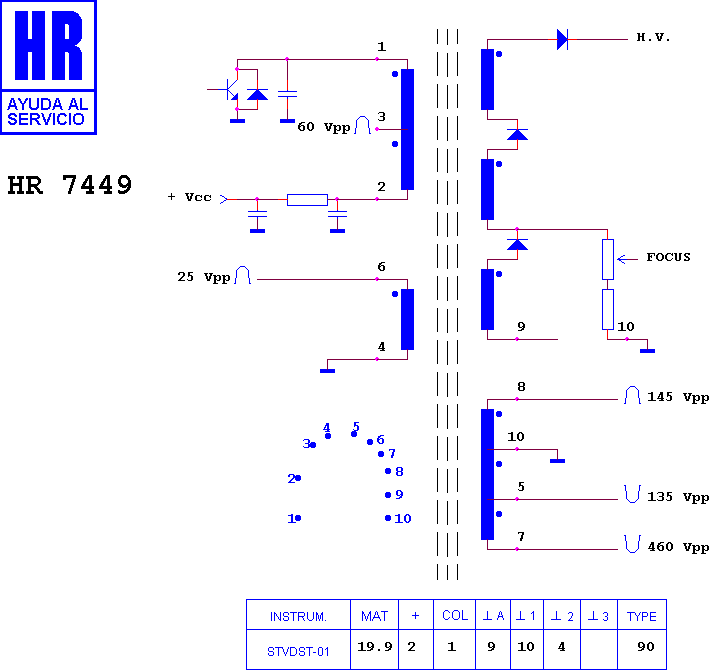

HR 7449

type ST · family 1XP1 · 19.9 kV maximum anode voltage · 90° deflection · 4 windings · 260 g

Manufacturer equivalents (6)

2009830253 · 2009830269 · MSH-1-536 · MSH-536 · MSH-D534 · MSH-D536

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7745 · HR 8262 · HR 8924 · HR 8065

Accessories (1)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 16525 — Screen (G2) control

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (13)

FUJITSU GENERAL GC 184 · FUJITSU GENERAL GC 208 · GENERAL GC 184 · NOBLEX 14 TC 665 · NOBLEX 20 TC 555 · NOBLEX 20 TC 634 · NOBLEX 20 TC 650 · NOBLEX 20 TC 665 · NOBLEX TC 650 · NOBLEX TC 671 · NOBLEX TVC 20" · TELETON CLP 203 · TELETON CLP 204
