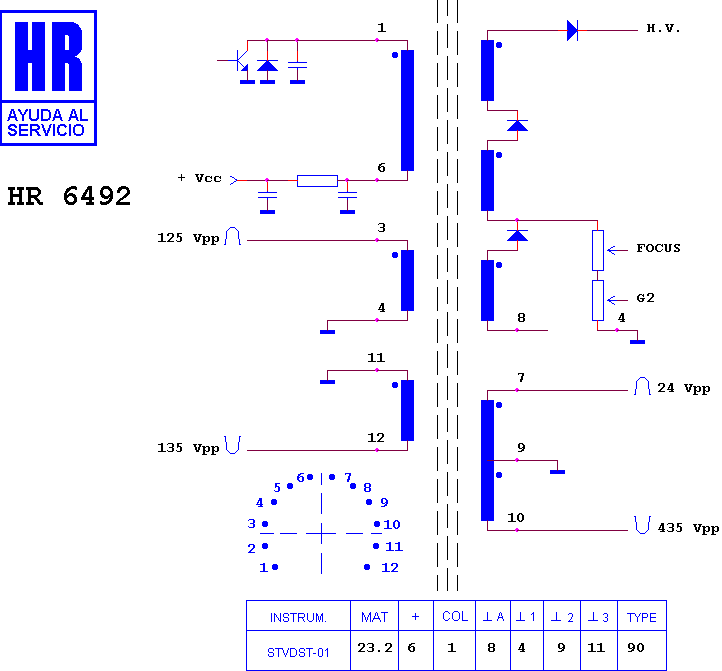

HR 6492

type ST · family 1BP1 · 23.2 kV maximum anode voltage · 90° deflection · 5 windings · 368 g

Manufacturer equivalents (1)

2434001

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8601 · HR 8262 · HR 6495 · HR 7022

Fitted to (1)

HITACHI CMT 2686
