HR 7208

type ST · family 1AP1 · 16.5 kV maximum anode voltage · 90° deflection · 4 windings · 370 g

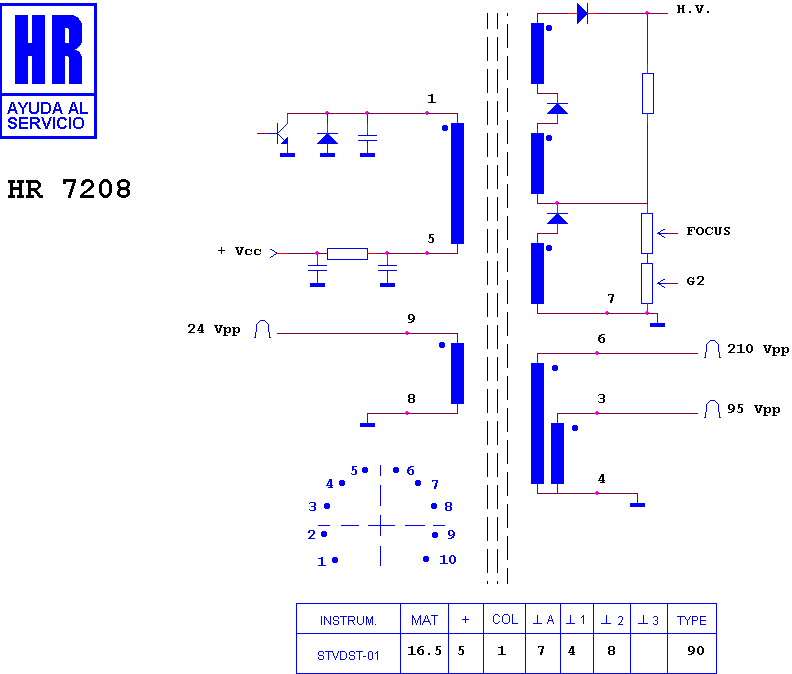

Schematic diagram for HR 7208
schematic

Manufacturer equivalents (4)

00 H 07018100 · 45158854 · 478040.00 · FAT30700

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7561 · HR 7162 · HR 7163 · HR 7514 · HR 7501 · HR 8118 · HR 7565 · HR 7507 · HR 6028 · HR 7517 · HR 7372 · HR 8396

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
