HR 8239

type ST · family 1NP1 · 19.3 kV maximum anode voltage · 90° deflection · 4 windings · 290 g

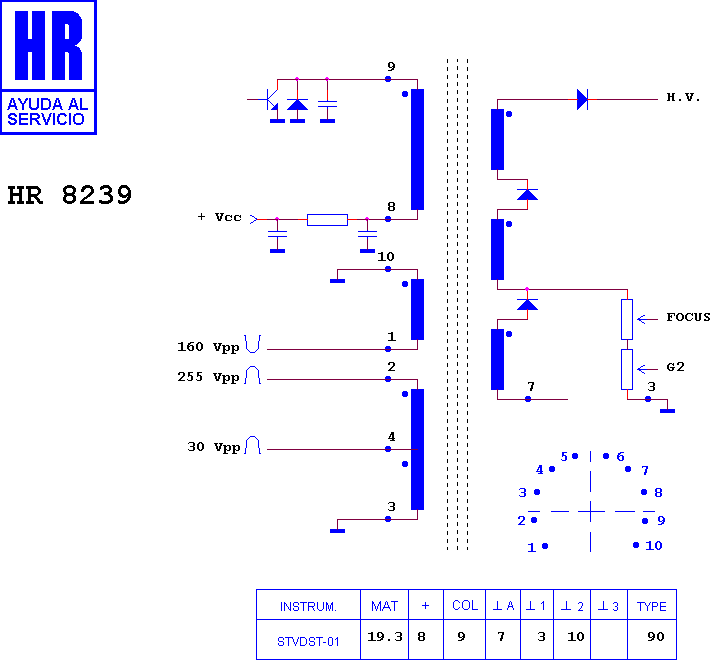

Schematic diagram for HR 8239
schematic

Manufacturer equivalents (8)

57135001902 · 571395001902 · FCV 1410 · FCV 1410 E 06 · FCV 1411 · FCV 1411 E 06 · KT 5003 · TVC/10

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6573 · HR 7589 · HR 8715 · HR 8760 · HR 7586 · HR 7947 · HR 7443 · HR 8536 · HR 7163 · HR 8394 · HR 7795 · HR 7900

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (6)

GRADIENTE 14 C 5160 · GRADIENTE 14 C 5170 · GRADIENTE GT 1410 · GRADIENTE GT 1411 · TELEFUNKEN 14 C 5160 · TELEFUNKEN 14 C 5170
