HR 7502

type ST · family 1NP · 20.3 kV maximum anode voltage · 90° deflection · 4 windings · 264 g

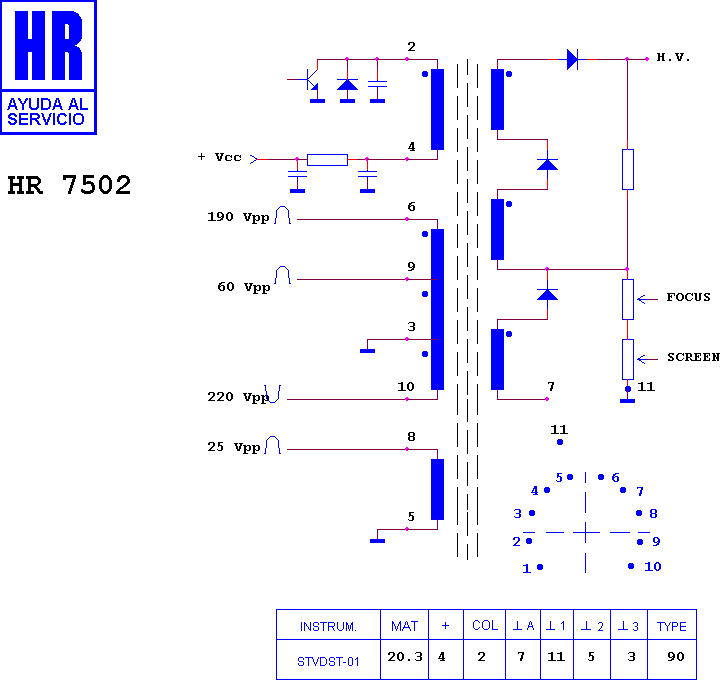

Schematic diagram for HR 7502
schematic

Manufacturer equivalents (3)

094-01040/0.3 · 94-01040/0.3 · HR 7502

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7177 · HR 7261 · HR 8187 · HR 7492 · HR 7012 · HR 7590 · HR 7010 · HR 7543 · HR 8920 · HR 7237 · HR 7815 · HR 7973

Fitted to (1)

SANYO CHASIS E 8 90§
