HR 7049

type ST · family 1AP2 · 21.3 kV maximum anode voltage · 90° deflection · 4 windings · 320 g

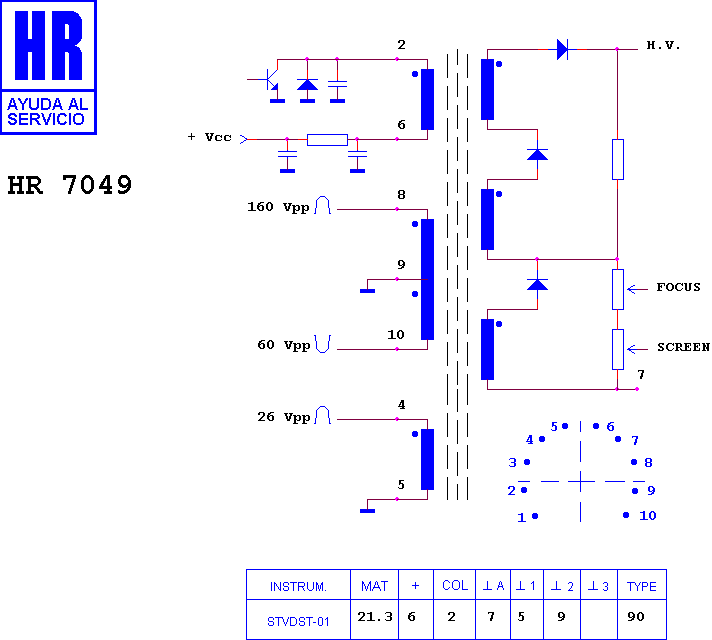

Schematic diagram for HR 7049
schematic

Manufacturer equivalents (3)

32324.00 · 32324.01 · HR 7049 B

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7012 · HR 7029 · HR 7010 · HR 7590 · HR 7237 · HR 6454 · HR 7544 · HR 7815 · HR 7261 · HR 7210 · HR 7292 · HR 7672

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
