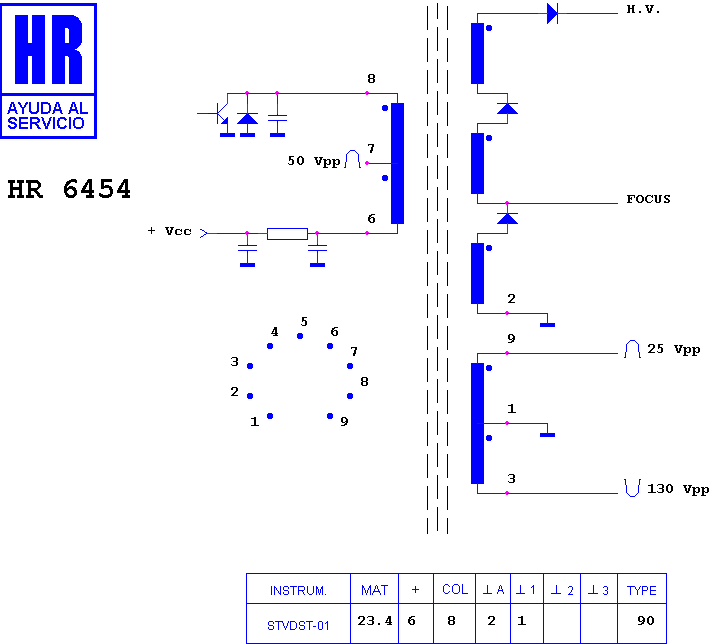

HR 6454

type ST · family 1BS1 · 23.4 kV maximum anode voltage · 90° deflection · 3 windings · 410 g

Manufacturer equivalents (2)

TLF 6041 · TLF 6041 F

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6509 · HR 8183 · HR 6586 · HR 7619 · HR 7544 · HR 8908 · HR 7049 · HR 7893
