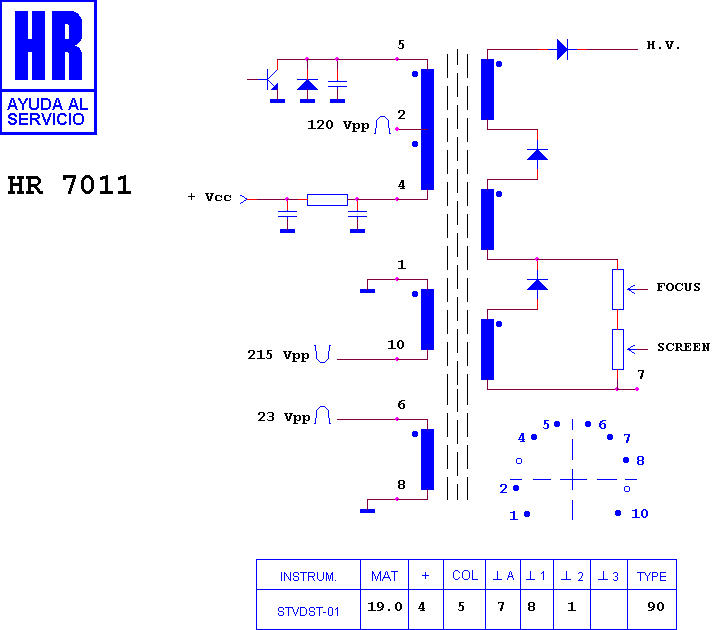

HR 7011

type ST · family 1NP1 · 19 kV maximum anode voltage · 90° deflection · 4 windings · 270 g

Manufacturer equivalents (8)

32011.00 · 32011.01 · 32311.00 · 32311.01 · 32311.02 · 32311.03 · HR 7011 · HR 7011 H

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7512 · HR 7119 · HR 7138 · HR 7161 · HR 7163 · HR 8536 · HR 7604 · HR 7589 · HR 7565 · HR 6573 · HR 7586 · HR 6028

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
