HR 7589

type ST · family 1NP · 21.8 kV maximum anode voltage · 90° deflection · 3 windings · 239 g

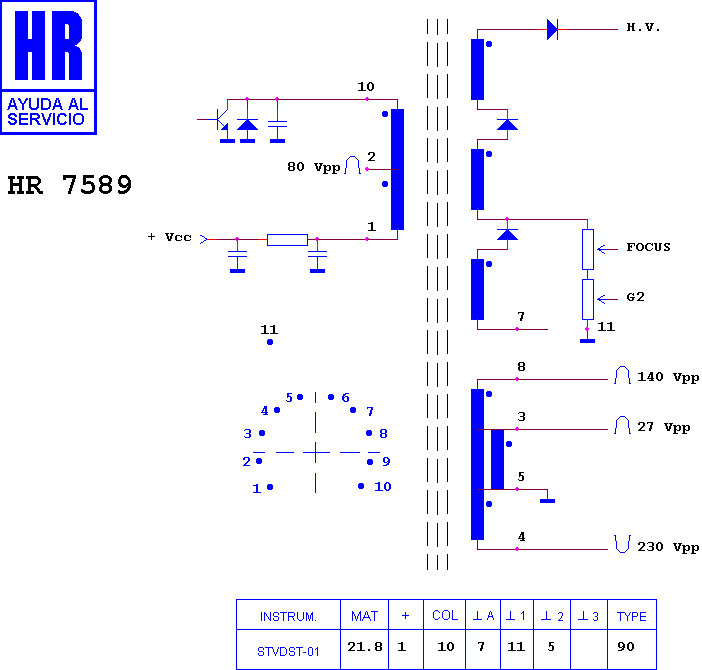

Schematic diagram for HR 7589
schematic

Manufacturer equivalents (25)

003071009 · 003071050 · 1142.0635 · 1142.0635B · 1142.0635C · 1142.0735 · 3122 138 38620 · 3122 138 38621 · 3122 138 38622 · 38620 · 38621 · 38622 · AT 2079/09 T · HR 7580 · HR 7580-00 · HR 7589 · PET 19-01 · RO 373 · RO 441 · TA/905 · TDKC32-01 · TDKS32-02 · TR 373 · TR 441 · TR1115

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8715 · HR 8760 · HR 6573 · HR 7929 · HR 8394 · HR 7920 · HR 8899 · HR 8159 · HR 6571 · HR 7555 · HR 7517 · HR 6588

Fitted to (11)

OTF 4346 · OTF 4452 · OTF CTV 345 · OTF CTV 346 · OTF CTV 347 · OTF CTV 461 · OTF CTV 470 · TESSLA 4346 · TESSLA 4452 · TESSLA CHASIS 4346 16" · TESSLA CHASIS 4452 20"
