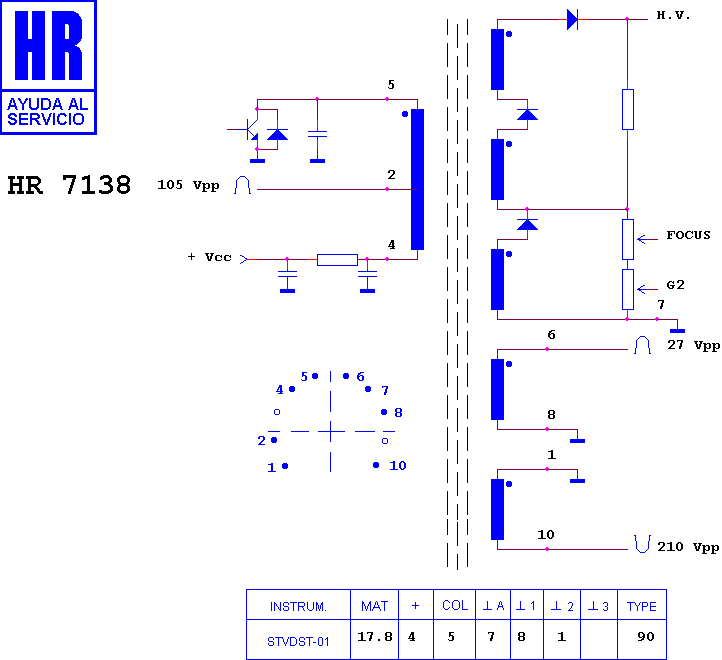

HR 7138

type ST · family 1AP2 · 17.8 kV maximum anode voltage · 90° deflection · 3 windings · 320 g

Manufacturer equivalents (1)

HR 7138

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7512 · HR 7119 · HR 7011 · HR 7553 · HR 7372 · HR 7517 · HR 7501 · HR 7555 · HR 7446 · HR 8045 · HR 6007 · HR 7920

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
