HR 7372

type ST · family 1AP1 · 17.9 kV maximum anode voltage · 90° deflection · 3 windings · 366 g

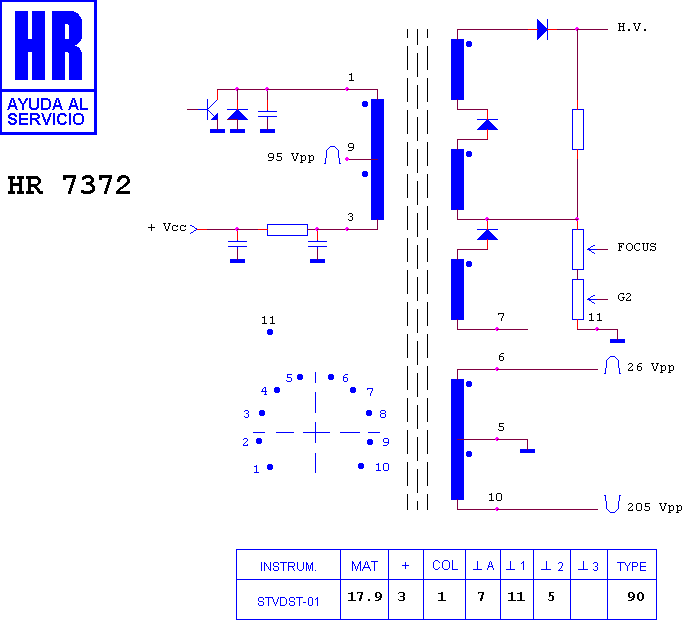

Schematic diagram for HR 7372
schematic

Manufacturer equivalents (3)

1192.0078 · 1362.3049 · 28028170

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80023 · HR 8276 · HR 8298 · HR 7211 · HR 7501 · HR 7517 · HR 8118 · HR 7512 · HR 7446 · HR 8045 · HR 7553 · HR 7672
