HR 7732

type ST · family 1YP · 24.6 kV maximum anode voltage · 90° deflection · 3 windings · 412 g

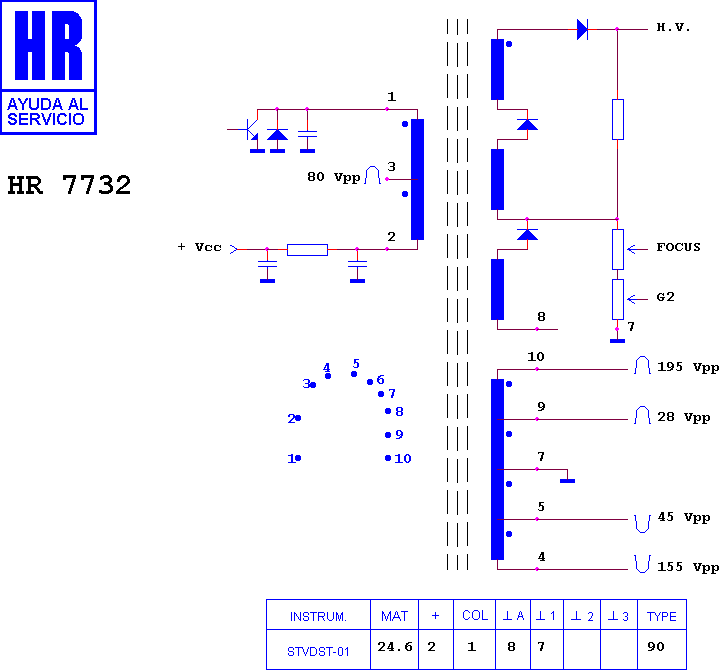

Schematic diagram for HR 7732
schematic

Manufacturer equivalents (4)

002 651 0599 · 26510599 · F 1780 CE · RTRNF1780CEZZ

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8467 · HR 7869 · HR 7527 · HR 8295 · HR 6399 · HR 6490 · HR 7893 · HR 7562

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (2)

SHARP CX 6349 · SHARP CX 6359
