HR 7869

type ST · family 1XP1 · 18.6 kV maximum anode voltage · 90° deflection · 3 windings · 260 g

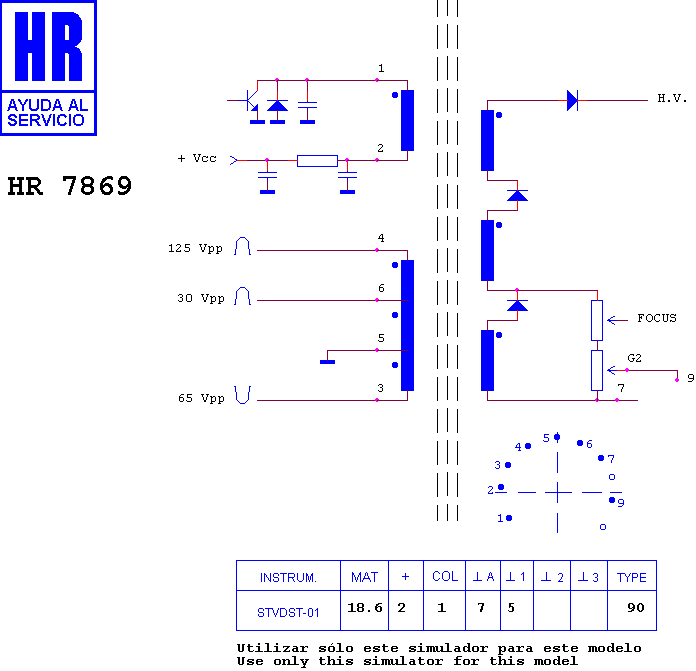

Schematic diagram for HR 7869
schematic

Manufacturer equivalents (3)

15 E 000-0049 · FDA 013 · FDA 013 HC

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7627 · HR 8467 · HR 8908 · HR 7732 · HR 7867 · HR 8925 · HR 8907 · HR 7419 · HR 7893 · HR 7527 · HR 80049 · HR 6586

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
