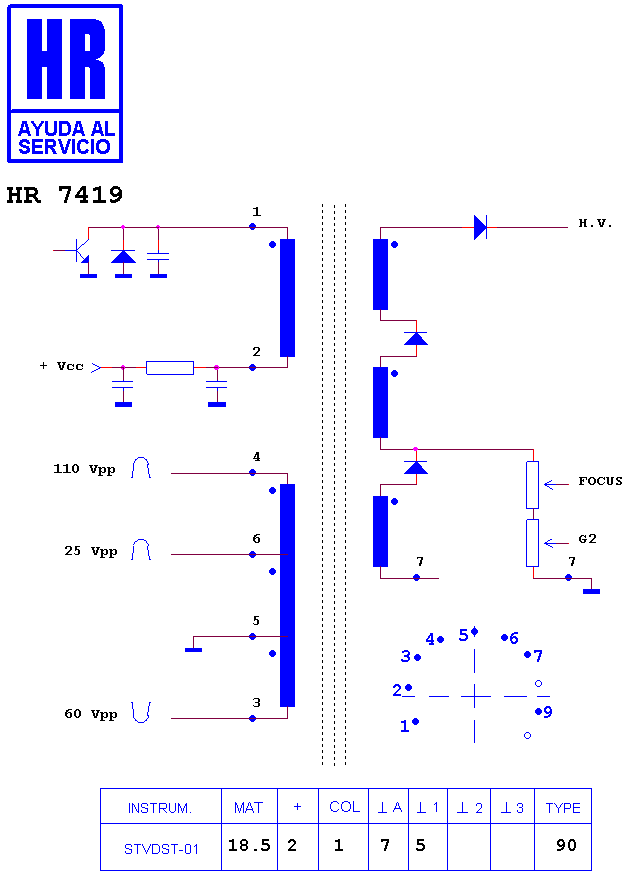

HR 7419

type ST · family 1XP1 · 18.5 kV maximum anode voltage · 90° deflection · 3 windings · 290 g

Manufacturer equivalents (2)

BSC 24-4853 · TA604

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7627 · HR 7869 · HR 7867 · HR 8908 · HR 8925 · HR 8907 · HR 8183 · HR 7619 · HR 7552 · HR 8036 · HR 7562 · HR 7527

Fitted to (1)

SVA A 3 20"

Search this part in the full database
